Stanley® WI-Q Wireless Access Control System

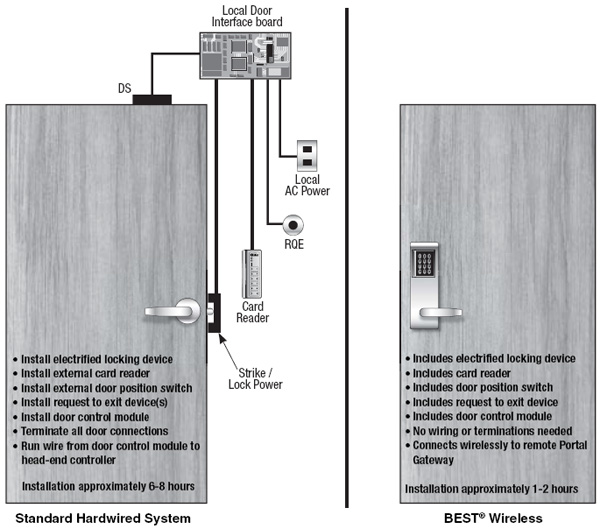

The Stanley® Wi-Q™ Wireless Technology is a smart, fast, efficient wireless access control solution that will change the way you look at wireless access control.

The system’s 128 bit AES security encryption and ultra-smart power consumption provide unsurpassed online benefits without the online installation costs. Combine those benefits with multiple redundancy of the access control data at the reader, gateway and host computer means the system makes the access control decision at the door when the card is presented. Stanley also built this advanced technology into its existing line of access control solutions so one application can now control the BEST® offline, wireless and online access control doors, CCTV and ID Badging.
Read more about Stanley® WI-Q Wireless Access Control System »

WI-Q™ Software

Read more about WI-Q™ Software »

Stanley® WI-Q™ Locking Hardware – Features

• Dynamic memory up to 65K users per reader
• Each reader has its own unique MAC address
• Battery-powered by ‘AA’ battery pack
• All intelligence is at the door, NOT at a controller
• Standard Integrated Door Switch (DS), Latch Switch (LS), Request-to-Exit (RQE) and Key Override Sensor (KOS) on BEST® mortise chassis
• Standard Integrated DS, and RQE on BEST® cylindrical Standard Integrated DS, LS, RQE or EX chassis with the Precision™ exit device line.
• 85K-event audit trail stored dynamically at reader
• 144 Multiple time zone intervals/holiday periods per reader
• ADA compliant locksets
• Available in cylindrical, mortise, exit device, and wireless access controller configurations
• Magnetic stripe/PIN Dual-validation, HID and Indala proximity reader technology
• Two processors for efficient and reliable transfers of data and firmware updates
• Remote reader diagnostics right from PC (Battery Level and signal strength of each lock)

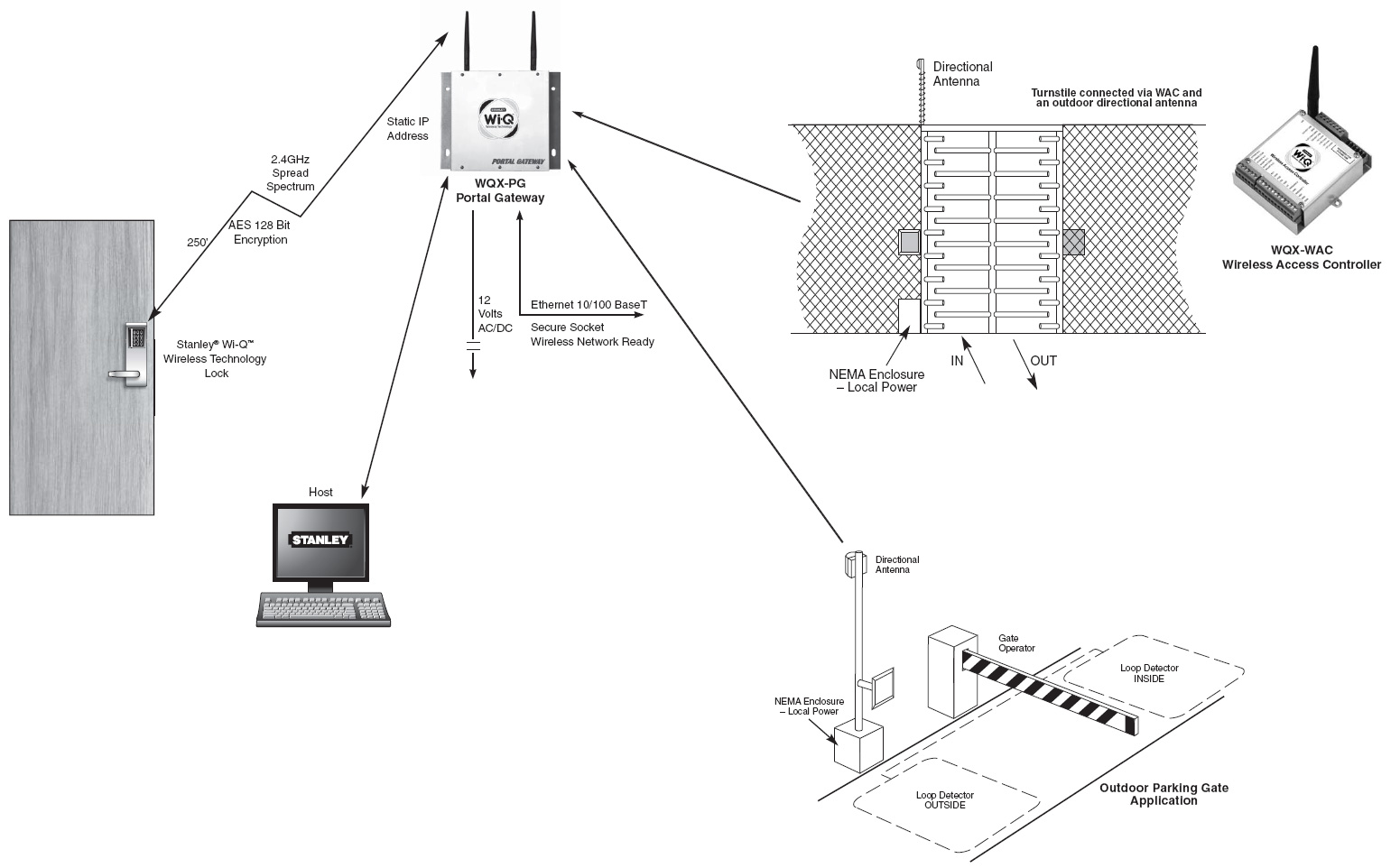

Wireless Portal Gateway – Standard Door

Features

• Communicates at 2.4GHz spread spectrum to wireless readers or wireless access controllers
• Uses 802.15.4 protocol with clear channels above 802.11 to allow Wi-Fi interoperability
• 10/100 Base-T bit Ethernet
• Provides redundant communication (locks attached to the strongest signal)
• Non-dedicated portal can communicate with 1 to 128 readers (Does not imply that 128 readers/locks will be within distance of RF range to connect. Total number of portal gateways required is based on individual system survey and requirements.)
• Ceiling mounted Omnidirectional antenna included as standard
• Does not require typical controller hardwiring, simply plug the Portal Gateway into an existing TCP/IP network and provide local power.

Wireless Access Controller

Wireless Access Controller (WAC) for turnstiles, parking gate arms, store front entry doors and existing hard-wired card access doors in retrofit applications.

WIRELESS ACCESS CONTROLLER – FEATURES

• Provides wireless control of electric locks on glass/aluminum doors
• Provides relay control for various locking devices
• Recommended for exterior door applications
• Existing wired system can be converted to wireless technology
• 2 output relays (Form-C) control external devices (alarms, electrified hardware, etc.)
• Monitors door latch, door status and request-to-exit
• Facilitates ADA compliance to control auto open type doors
• Provide control for local door alarm/sounders for door held open events

Mortise Lock Specifications

• Case: 0.095″ cold rolled steel, 5 7/8″ (149mm) H x 7/8″ (22mm) D x 4 1/16″ (149mm) W. Steel is zinc dichromate plated for corrosion protection.
• Faceplate: Brass or bronze material, 8″ (203mm) H x 1 1/4″ (31mm) W x 1/16″ (1mm) T. Lock face automatically adjusts to proper bevel during installation.
• Strike: Brass, bronze, or stainless steel base material, 4 7/8″ (124mm) H x 11/4″ (31mm) W x 3/32″ (2mm) T. Fits standard door frame cut out as specified in ANSI A115.1. Universal (non-handed) strike supplied standard with lock.
• Backset: 2 3/4″ (69mm)
• Door thickness: Standard lock configuration designed for doors 1 3/4″ (44mm) thick.
• Latchbolt: Solid stainless steel, 3/4″ (19mm) throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
• Deadbolt: Stainless steel, 1″ (25mm) throw. Auxiliary bolt: Stainless steel, non-handed. Lever handle: Brass, bronze, or stainless steel base material. Lever styles 3, 14, and 15 return to a minimum of 1/2″ (12mm) of door surface. Levers 12, 16, and 17 do not return.
• Escutcheons: 10 3/8″ (263mm) H x 3 1/4″ (82mm) W x 1″ (25mm) D (1″ (25mm) at the top, sloping down to 3/4″ (19mm) at the bottom)
• Finishes:
  605 – bright brass, clear coated
  606 – satin brass, clear coated
  611 – bright bronze, clear coated
  612 – satin bronze, clear coated
  613* – oxidized satin bronze, oil rubbed
  618 – polished nickel plated
  619 – satin nickel plated
  625 – bright chromium plated
  626 – satin chromium plated
  629 – bright stainless steel 630 – satin stainless steel
  690** – dark bronze powder coated

* 613 finish is designed to wear over time, providing an “antique” appearance.
** 690 finish will continue as a dark brown appearance over time.
